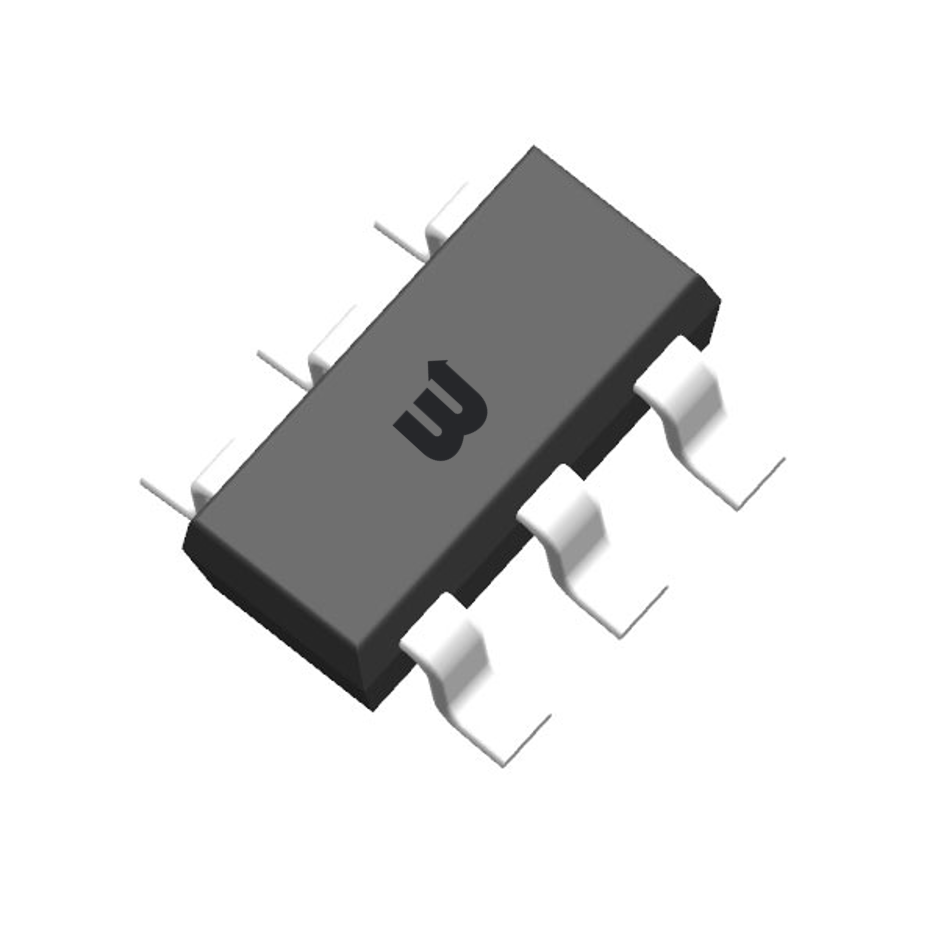

High Power Factor,Low THD,Isolated Offline LED Controller
The DX6210 is a single-power stage, isolated fly-backand non-isolated Buck boost configuration,which is adopts theprimary side offline LED lighting regulator to achieve high power factor . The proprietary real-current control method can control the LED current accurately from the primary side information . It can significantly simplify the LED lighting system design by eliminating the secondary side feedback components and the opto-coupler .
The DX6210 integrates active power factor correction and works in Quasi Resonance mode (QRM) in order to reduce the MOSFET switching losses to provide a high efficiency solution for lighting applications. The external programmable line voltage compensation provides a more precise output current throughout the universal AC input voltage range. The leading edge blanking circuit on the CS/FB input removes the signal glitch and results in reduced external components and system cost.
The multi-protection features of DX6210 greatly enhance the system reliability and safety . The DX6210 features VDD and output over voltage protection; output short
circuit protection, cycle-by-cycle current limit and secondary peak current protection on CS pin, VDD UVLO and auto-restart and over-temperature protection. The driver output voltage is clamped at 18V to protect the external power MOSFET .
Single stage PFC,up to 100W power range
Primary side regulation without Secondary Feedback
Quasi Resonance (QR) mode with Fly-back and Buck Boost topology
Real-Current control to meet accurate
output current
Very less components
Programmable input AC voltage compensation
Leading Edge Blanking on CS/FB pin
Protection Features
- Building in hysteresis OTP
- VDD over voltage protection
- Cycle by cycle current limiting on CS pin
- Secondary peak current protection on CS pin
- Output short to GND protection
- Output programmable over voltage protection FB and CS pins default protection
文檔名稱 | 文檔描述 | 下載 |
---|---|---|
DX6210_EN_A2 | 498KB |
